Production / Detailed Design

Zebec has, through its experience in basic design, acquired the capability for detailed design using Class approved Ship Constructor software .

The capability extends to preparation of the under-mentioned production drawings:

• Product hierarchy
  - Defines assembly sequence and build strategy
• Hull

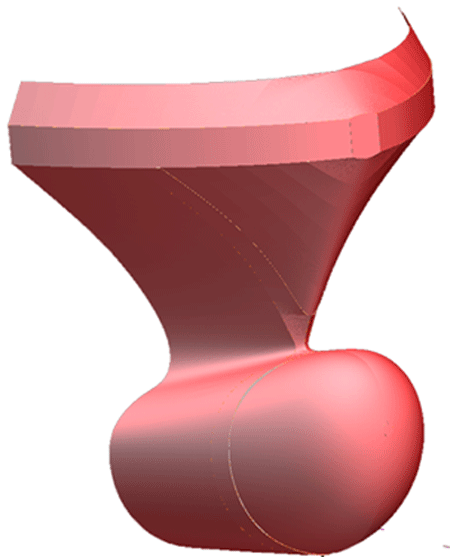

  - Creates complex surface models and Pin jig drawings
• Structure
  - Provides features such as plate parts, stiffeners, corrugated plates.
• Weld management
  - Creates welding schedules
• Nest and Profile
  - Creates nesting files
• NC PYROS
  - Configures direct interface to CNC machine for cutting
• Equipment
  - Models all equipment and inserts into the ship model
• Pipe
  - Complete 3D production model for pipe systems
• HVAC
  - Easily creates complex HVAC runs relative to structure
• Penetrations
  - Allows the creation of intelligent penetration through structural members
• Reports
  - Allows for definition and maintenance of complex production detail reports.
